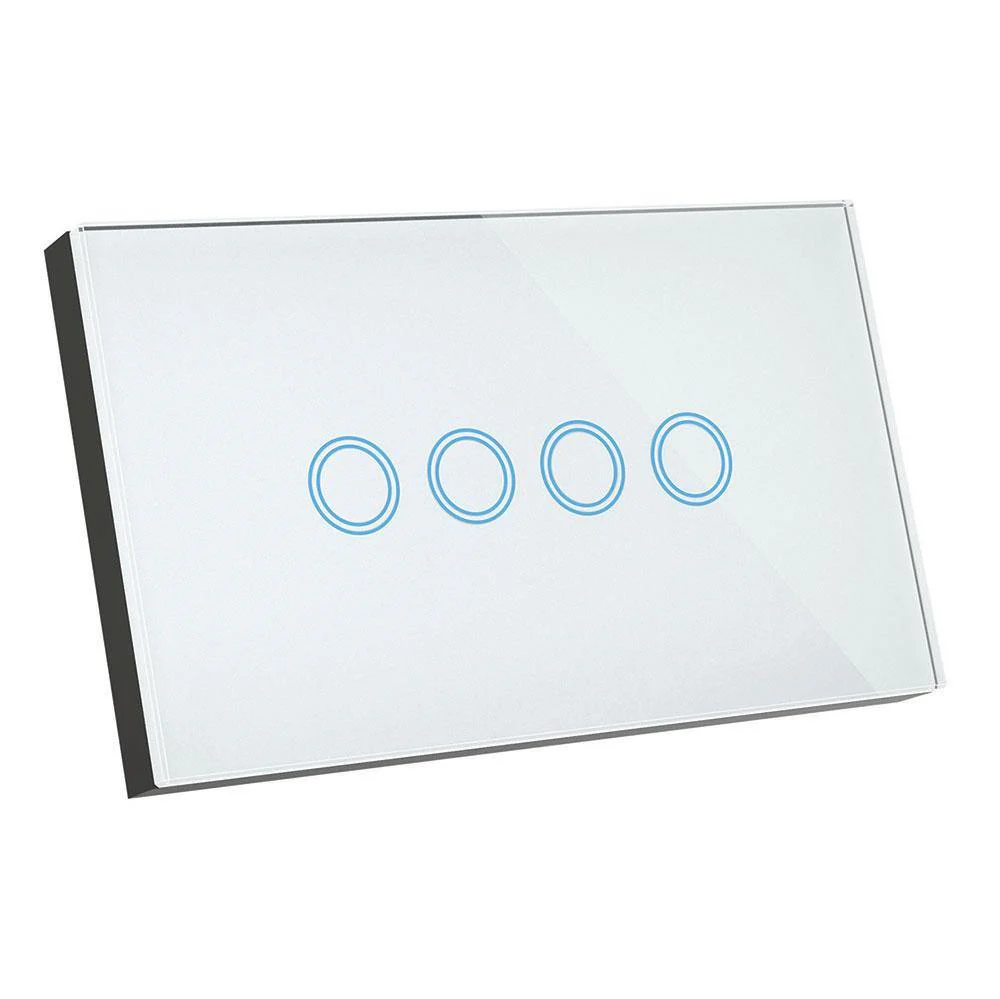

Smart wall switches allow you to control lighting, and appliances anywhere by either voice, app or manually by the switch. The Elite wall switch is made from durable, mark-resistant tempered glass to keep your switches looking like new for years to come. Perfect for new or retro-fit installations.

Touch sensitive buttons incorporate multi-way on/off switching with a easy to see blue LED indicator that shows which switch is in use, diminishing to a subtle glow when off. Built-in power monitoring feature allows you to measure energy use of connected lights and appliances. Automatic soft start mode to improve lamp life. Set virtual automation looping without the hassle of installing long cable runs.

Maximum load capacities per gang 150W (LED), 500W (Incandescent). Overheat and over-current protection. Big bore 20mm2 terminals suitable for 2.5mm cables, requires neutral to operate (3-wire design). Fits standard plaster/stud brackets (84mm centres). Create schedules and timing to automate your home. Compatible with BrilliantSmart devices via automation & IFTTT.



Touch ON/OFF control

Blue LED indicator when on

Power monitoring to measure energy use of connected appliances

Data Sheet

Material:

• Tempered Glass / Polycarbonate

Finish:

• White


Voltage:

• 240V

Cutout:

• Standard with 84mm centres

Maximum Load:

• 500W Incandescent, 150W LED per gang

Device Requirements:

• iOS 8.0 or higher, Android 4.1 or higher

Warranty:

• 2 Year Warranty
